Universal programmable dispenser DSP-02
We will stock the goods 2-3 weeks after receiving the order
935,09 EUR / incl. VAT
Description
The DSP-02 dispenser is designed for easy, fast and exact dosing liquids and pastes. A bulk of given material deposit is determined by the combination of the air pressure, dosing tip size, and pulse duration. The DSP-02 dispenser can operate either in a free mode when the pulse duration is determined by the foot pedal grip time, or in a controlled mode when the pulse duration is determined by the value set in the program.
For the sake of dispensing liquids and pastes with low viscosity, the dispenser is provided with a controlled vacuum feature. Accordingly, when the dispensing output pressure disabled, the back intake on the output can be controlled so that the dispensed liquid or paste dripping down cannot occur.
Highlights
- Simple control.
- Mechanically rugged structure.
- Favorable price.
- High operational reliability.
- Control of pressure, back vacuum and pulse duration in wide limits.
- Up to 99 various programs can be set up.
Technical parametres
- Power supply: 230 VAC ± 10 %, 50 Hz.
- Voltage on pedal: 24 V dc.
- Air input pressure: 5 – 7 bar.
- Consumption: Max 8 W.
- Output pressure: 0,1 – 7 bar.
- Timer range: 0,01 – 31 sec.
- Operating temperature: 10 – 35 °C.
- Operating air humidity: < 85 % RH, w/o condensation.
- Dimensions: 210 x 130 x 145 mm.
- Weight: 2,5 kg.
The dispenser is situated in a metallic box. A supply cable with the main switch and safety element, compressed air input, and pedal output are located on the rear panel. An output air connector, control elements – output pressure and vacuum controller, mode switch, programming switches and display – are located on the front panel. The programming can be locked up to avoid inadvertent handling.
Hand Dispenser dispenses only for the pedal. 1) Pressing the pedal 2) Releasing the pedal |
Tact Dispenser dispenses the same amount every pedal. Programmable up to 20-time values doses. "a" time value the arrows indicate pressing the pedal |

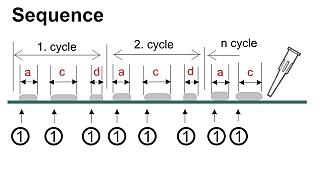

Sequence Dispenser dispenses programmed (can be of different lengths) consecutive time value (up to 32 different values) doses of activated pedal. The batch sequence is a cycle that is repeated (up to 20 cycles). "a,b,c,d" time values the arrows indicate pressing the pedal |
|

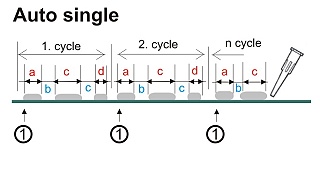

Auto single Fully programmable mode. Programming the length of the dose and the length of the gap. The batch sequence and gaps in the cycle. Each cycle is activated pedal. "a,b,c" time value of dose "b,c" time value of gap the arrows indicate pressing the pedal |

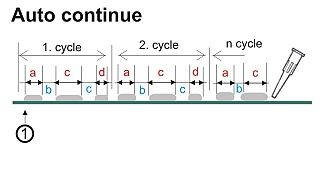

Auto continue Fully programmable mode. Programming the length of the dose and the length of the gap. The batch sequence with gaps in the cycle. The cycles are continuously repeated after activating pedal. "a,b,c" time value of dose "b,c" time value of gap the arrows indicate pressing the pedal |
Obsah balení:
- 1x adapter 10cc (560042A).
- 1x barrel 10cc (560041A).
- 1x piston 10cc (560573H).
- 1x tip (DISP) 560088 (calibre 20) 105000141.
- 1x tip (DISP) 560014 (calibre 23) 105000135.
- 1x tip (DISP) 560016 (calibre 30) 105000137.
- 1x tip (PLAST) 560010 CW (calibre 16) 105000187.
- 1x tip (PLAST) 560011 (calibre 18) 105000192.
- 1x tip (PLAST) 561338K (calibre 24) 105000201.
The DSP-02 dispenser is designed for easy, fast and exact dosing liquids and pastes. A bulk of given material deposit is determined by the combination of the air pressure, dosing tip size, and pulse duration.
